產品：上下料旋轉料倉
工位：6
材質：鋼材等
用途：是自動化上料的配套設備
尺寸：700mm*700mm*1000mm
重量：100kg
產地：中國東莞

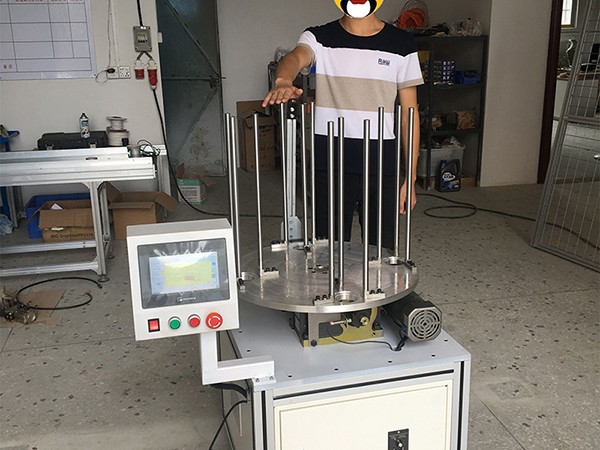

Product: Loading and unloading rotating silo
Stations: 6
Material: Steel, etc.
Purpose: It is a supporting equipment for automatic feeding
Size: 700mm*700mm*1000mm
Weight: 100kg
Place of Origin: Dongguan, China
六工位上料機：
組成：機架、分割器、伺服電機、升降系統、檢測系統、PLC等系統組成
料倉的旋轉采用減速電機帶動分割器旋轉實現，由傳感器控制料倉內托盤的位置，物料的進給采用電機和減速機帶動鏈條上的托板升降來實現，自動料倉的控制由獨立的PLC控制器完成。
優點：人工放料后可供機床持續加工，減少人工等待時間，主要配合機器人自動運行加工使用，可實現機床加工半自動化。一個人工可操作多臺加工設備
適合于圓形類產品加工，其他不規則產品可以根據實際形狀設計定位裝置
特點：
1.節省人力：很多機加工會有需要人去上料，上料要等很多。該產品不用人工去等待上料，配合機器人加工最好。
2.超高速運行：可調節不同的工作速度，滿足大部分上料需求
3.廣泛的工作范圍：適合各類機加工上料
公司產品規格型號多種，可根據您產品的特點及需求，為您選型，并免費提供整體自動化解決方案。
Six-station feeder:

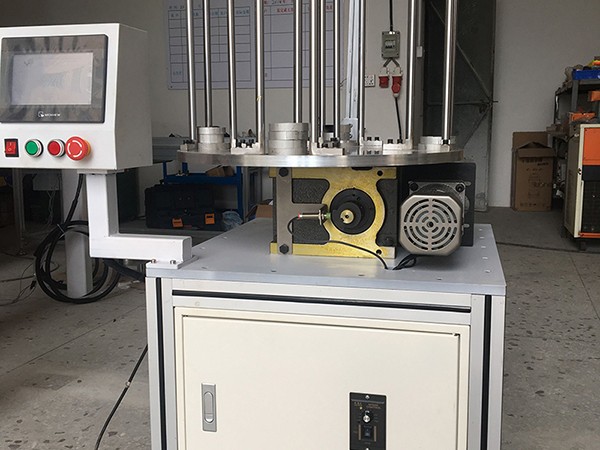

Composition: frame, splitter, servo motor, lifting system, detection system, PLC and other systems
The rotation of the silo is realized by using a geared motor to drive the divider to rotate. The position of the pallet in the silo is controlled by a sensor. The feeding of materials is realized by the motor and a reducer driving the pallet on the chain to rise and fall. The automatic silo is controlled by an independent The PLC controller is completed.
Advantages: After manual discharging, it can be used for continuous processing by machine tools, reducing manual waiting time. It is mainly used with robots for automatic operation and processing, which can realize semi-automatic processing of machine tools. One person can operate multiple processing equipment
Suitable for processing round products, other irregular products can be designed according to the actual shape of the positioning device
Features:
1. Save manpower: Many machining processes will require people to load materials, which requires a lot of waiting. This product does not need to wait for the material to be loaded manually, it is best to cooperate with the robot to process.
2. Ultra-high-speed operation: different working speeds can be adjusted to meet most feeding requirements
3. Wide scope of work: suitable for all kinds of machining and feeding materials
The company has a variety of product specifications and models, which can be selected for you according to the characteristics and needs of your products, and provide free overall automation solutions.
